Rear-ventilated facade AGEPAN® UDP T+G
Rear-ventilated facade with the proven advantages of AGEPAN® UDP T+G. It is used to minimise thermal bridges and as a second water-repellent layer in the roof and wall area with rear-ventilated cladding. The AGEPAN® UDP T+G is particularly robust due to the trough-shaped raw density profile, which allows the sheet to be rotated as required in your application.
Specifications
| Construction Example | Product | Nominal Thickness (mm) |
|---|---|---|
| Inside | Gypsum board | 12,5 |
| AGEPAN® THD Install | > 40 | |
| AGEPAN® OSB 3 ECOBOARD | 15 | |
| Solid construction timber | 60 x 140 | |
| AGEPAN® Flex | 140 | |
| AGEPAN® UDP T+G | > 22 | |
| Outside | Facade |
| Inside | |
|---|---|
| Product | Gypsum board |
| Thickness | 12,5 |
| Product | AGEPAN® THD Install |
| Thickness | > 40 |
| Product | AGEPAN® OSB 3 ECOBOARD |
| Thickness | 15 |
| Product | Solid construction timber |
| Thickness | 60 x 140 |
| Product | AGEPAN® Flex |
| Thickness | 140 |
| Product | AGEPAN® UDP T+G |
| Thickness | > 22 |
| Product | Facade |
| Thickness | |
| Outside |

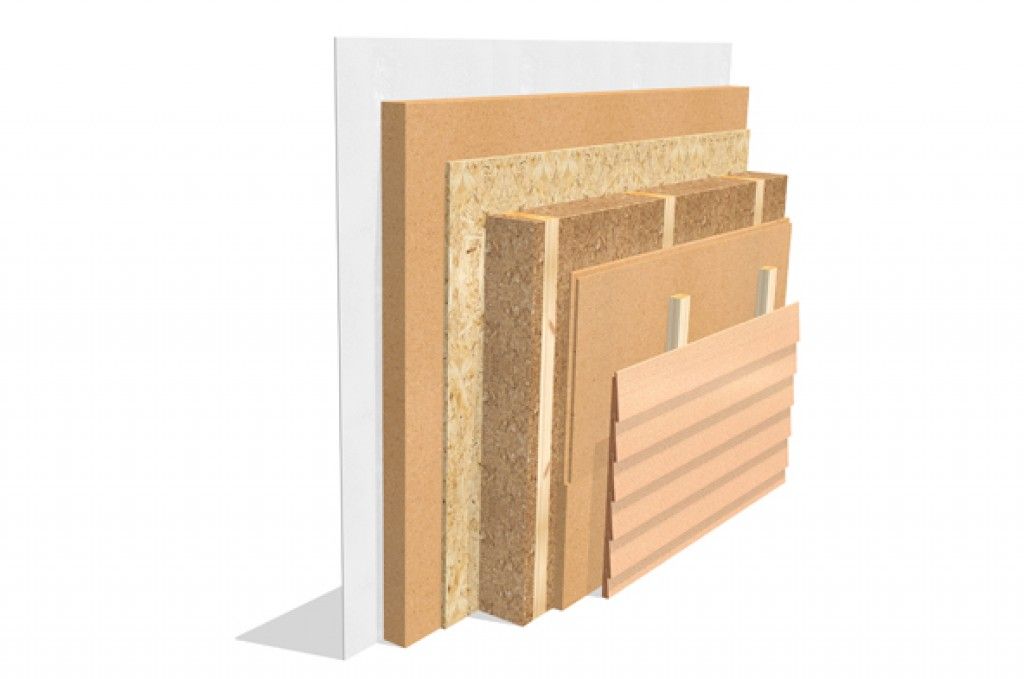

Construction example. Details, exact dimensions and thicknesses can be found in the respective test certificates, standards and building regulations. Please observe the processing instructions.
System’s components
